They are used in chemical manufacturing, water treatment, pharmaceuticals, agriculture, food processing, and various industrial operations.

Chemical fluids can vary significantly in corrosiveness, viscosity, temperature, concentration, and chemical composition. Pump selection therefore requires careful consideration of the fluid properties and operating conditions.

What Are Chemical Transfer Pumps?

Chemical transfer pumps are fluid-handling devices designed to transport chemical liquids from one location to another. Depending on the application, they can be configured for acids, alkalis, solvents, reagents, corrosive liquids, and other process fluids.

A chemical transfer system may include:

• Pump
• Motor or drive
• Suction piping
• Discharge piping
• Valves
• Filters or strainers
• Pressure gauges
• Flow monitoring
• Chemical-resistant seals
• Control equipment

The pump construction should be compatible with the chemical being handled.

Types of Chemical Transfer Pumps

Centrifugal Chemical Pumps

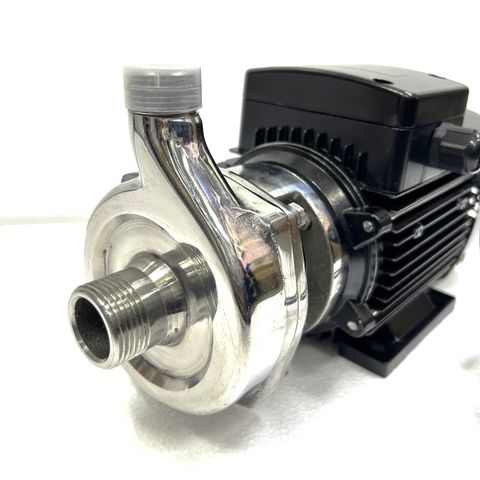

Centrifugal pumps use an impeller to generate continuous fluid flow. They are commonly used for relatively low-viscosity chemical liquids where the required flow and pressure fall within the pump's operating range.

Magnetic Drive Chemical Pumps

Magnetic drive pumps transfer rotational power through magnetic coupling and can use a sealless containment arrangement. They are often considered for applications where minimizing process-fluid leakage is important.

Diaphragm Chemical Pumps

Diaphragm pumps use a flexible diaphragm to move fluid. They can be suitable for certain corrosive chemicals, slurries, and fluids requiring isolated pumping chambers.

Peristaltic Chemical Pumps

Peristaltic pumps move fluid through flexible tubing or hose using a rotating compression mechanism. The fluid remains inside the tubing, which can be useful for certain chemically aggressive or contamination-sensitive applications.

Gear Chemical Pumps

Gear pumps use rotating gears to transport fluid through the pump casing. They can be suitable for compatible chemicals with higher viscosity and controlled flow requirements.

How Chemical Transfer Pumps Work

The operating principle depends on the pump technology, but a typical transfer cycle involves several stages.

1. Fluid Entry

Chemical liquid enters the pump through the suction connection from a storage tank, vessel, or process line.

2. Pumping Action

The selected pumping mechanism transfers mechanical energy to the fluid.

3. Pressure Generation

The pump develops sufficient pressure to overcome piping resistance, elevation changes, valves, filters, and other system components.

4. Fluid Transfer

The chemical moves through the discharge piping toward the destination tank or process equipment.

5. Flow Control

Valves, control systems, variable-speed drives, or other devices can regulate the required flow according to the process.

Main Components

Materials vary according to the chemical, temperature, pressure, and concentration.

Applications of Chemical Transfer Pumps

Chemical Manufacturing

Chemical plants use transfer pumps to move raw materials, intermediates, solvents, acids, alkalis, and finished process liquids between different production stages.

Water and Wastewater Treatment

Chemical pumps can transfer treatment chemicals such as coagulants, disinfectants, pH-control chemicals, and other process fluids.

Pharmaceutical Manufacturing

Specialized pumps can be used for transferring process chemicals, solvents, cleaning fluids, and other compatible liquids.

Agriculture and Fertilizer Processing

Chemical transfer systems can handle selected liquid fertilizers, agricultural formulations, and treatment chemicals.

Petrochemical Processing

Pump systems can transfer compatible fuels, solvents, additives, and other process liquids within petrochemical facilities.

Industrial Cleaning

Chemical-resistant pumps can circulate or transfer cleaning formulations used in industrial processing and equipment-cleaning systems.

Chemical Compatibility and Pump Materials

Material compatibility is one of the most important considerations in chemical pump selection.

Common construction materials may include:

• Stainless steel
• Hastelloy and other specialty alloys
• Polypropylene
• PVDF
• PTFE-based components
• Reinforced plastics
• Specialized elastomers

The correct material depends on chemical concentration, temperature, exposure time, pressure, and other process conditions. Compatibility data should be verified for the specific chemical and operating environment.

Important Performance Parameters

These parameters should be evaluated together rather than independently.

How to Select Chemical Transfer Pumps

Pump selection should begin with a detailed description of the chemical and the process.

Important factors include:

• Chemical composition
• Concentration
• Required flow rate
• Discharge pressure
• Fluid temperature
• Viscosity
• Specific gravity
• Vapor pressure
• Solids content
• Pump materials
• Seal arrangement
• Continuous or intermittent operation
• Motor requirements
• Installation configuration

For hazardous or highly corrosive chemicals, containment, ventilation, leak detection, and appropriate safety systems should also be considered.

Safety Considerations

Chemical transfer systems require appropriate engineering and operating procedures. A pump that is hydraulically suitable may still be inappropriate if its wetted materials or seals are incompatible with the chemical.

Important considerations include:

• Chemical-resistant materials
• Appropriate containment
• Leak detection
• Correct valve configuration
• Proper ventilation where required
• Pressure protection
• Emergency isolation
• Operator training
• Appropriate personal protective equipment

Applicable chemical-handling regulations and facility procedures should be followed.

Maintenance Considerations

Regular maintenance can help maintain pump performance and reduce unexpected failures.

Typical activities include:

• Inspecting seals and gaskets
• Checking pump casing
• Monitoring vibration
• Checking bearings
• Inspecting hoses and piping
• Monitoring pressure and flow
• Checking valves
• Inspecting electrical connections
• Looking for signs of corrosion
• Reviewing abnormal noise or temperature

Maintenance procedures should account for the chemical being handled and the manufacturer's technical requirements.

Conclusion

Chemical transfer pumps are important components of industrial fluid-handling systems where chemicals must be moved between storage, processing, and treatment stages. Centrifugal, magnetic drive, diaphragm, peristaltic, and gear pump technologies provide different characteristics for different chemical applications.

Proper selection requires evaluation of chemical compatibility, concentration, temperature, viscosity, flow, pressure, vapor pressure, solids content, materials, seals, and safety requirements. A complete system assessment helps ensure that the pump is appropriate for its intended operating environment.
