For electronic products, consistency across these stages matters because a circuit board can contain hundreds or thousands of individual parts. A small sourcing discrepancy, soldering defect, or assembly error can affect electrical performance, reliability, and the ability of the finished device to pass functional testing.

Understanding the turnkey PCB assembly process helps engineers, product teams, and manufacturing professionals see how a design moves from digital files to a tested electronic assembly. The key areas include component selection, fabrication requirements, automated placement, soldering, inspection, electrical testing, and production controls.

What Turnkey PCB Assembly Includes

Turnkey PCB assembly generally means that the manufacturing workflow coordinates both material procurement and board assembly rather than requiring the customer to provide every electronic component. The scope can vary, but a complete workflow typically begins with engineering documentation and ends with tested circuit boards ready for integration.

The process requires accurate coordination between the bill of materials, PCB design files, approved components, assembly specifications, and quality requirements. Even when the production quantity changes, these relationships must remain controlled to prevent substitutions or process errors.

A well-organized turnkey process also maintains traceability. Component lots, inspection results, production batches, and testing records can provide useful information when troubleshooting a design or investigating a quality issue.

Components That Shape a PCB Assembly

Every printed circuit board depends on a combination of active, passive, electromechanical, and interconnection components. Their characteristics influence electrical behavior, thermal performance, mechanical stability, and manufacturability.

Active and Passive Components

Integrated circuits, microcontrollers, processors, transistors, and other semiconductors perform computational, switching, amplification, and control functions. Passive components such as resistors, capacitors, and inductors regulate electrical characteristics without providing amplification.

Component selection needs to consider more than electrical specifications. Package size, temperature rating, tolerance, availability, lifecycle status, and compatibility with the assembly process can all influence production decisions.

Connectors and Specialized Parts

Connectors provide electrical and mechanical interfaces between the PCB and other parts of a product. Depending on the application, an assembly may also include switches, relays, sensors, transformers, antennas, displays, or other specialized devices.

These parts often require additional assembly considerations because their physical dimensions, alignment requirements, or mechanical stresses may differ from standard surface-mount components.

From PCB Files to Component Placement

Production typically starts by reviewing the design package. Common manufacturing inputs include Gerber or equivalent PCB fabrication data, a bill of materials, component placement information, assembly drawings, and relevant design notes.

The bill of materials identifies component references, values, package information, manufacturers, and approved part numbers. This information must remain synchronized with the actual board design.

After the documentation is validated, production equipment prepares for component placement. Surface-mount technology is commonly handled using automated pick-and-place machines that position components onto solder paste deposited on the PCB.

Placement accuracy is essential, particularly for fine-pitch integrated circuits and miniature passive components. Incorrect orientation or positioning can create electrical faults or prevent later inspection systems from recognizing the assembly correctly.

Soldering and Assembly Methods

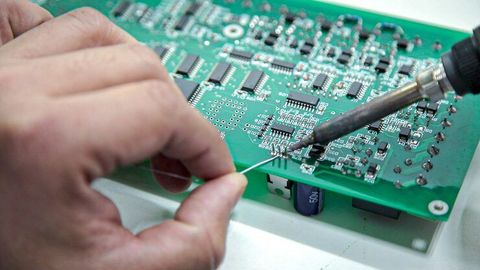

Soldering creates the electrical and mechanical connection between components and the PCB. For most surface-mount assemblies, solder paste is applied to designated pads through a stencil before components are placed.

The populated board then passes through a reflow oven. Carefully controlled temperature zones cause the solder paste to melt and form reliable joints as the board moves through the thermal profile.

Through-hole components follow a different assembly approach. Depending on the design, they may be inserted manually or mechanically and then soldered using techniques such as selective soldering.

Thermal control matters throughout this stage. Excessive heat can damage sensitive components, while insufficient heating may produce weak or incomplete solder joints.

Inspection Before Electrical Testing

Inspection helps identify physical defects before a board proceeds to functional evaluation.

Automated Optical Inspection (AOI) uses cameras and image-processing methods to examine component placement, polarity, solder joints, and other visible characteristics. AOI is particularly useful for detecting missing or incorrectly positioned parts at production scale.

X-ray inspection can be applied where solder connections cannot be adequately evaluated from the exterior. This can be useful for components such as ball-grid arrays, where critical solder joints are located beneath the package.

Visual inspection remains useful as well, especially for checking mechanical details, connector alignment, contamination, damaged components, or other conditions that automated systems may not interpret correctly.

Electrical and Functional Testing

A board can look physically correct while still containing an electrical fault. Testing therefore plays an essential role in validating the finished assembly.

In-Circuit Testing (ICT) evaluates specific electrical characteristics at designated test points. Depending on the design, it may identify problems such as incorrect component values, open connections, short circuits, or certain assembly defects.

Flying-probe testing uses movable probes instead of a dedicated fixture and can be useful for prototypes or lower-volume production. Functional testing goes further by operating the board under defined conditions to determine whether it performs the intended application-level tasks.

The most appropriate testing strategy depends on board complexity, production volume, access to test points, required coverage, and the consequences of an undetected defect.

Managing Production Quality

Quality control is most effective when it is built into every production stage rather than applied only during final inspection.

A controlled turnkey workflow typically includes incoming component verification, material traceability, assembly process monitoring, inspection checkpoints, and documented test results. Manufacturing teams may also establish acceptance criteria for soldering, component placement, cleanliness, and electrical performance.

Industry standards such as IPC-7711/7721 and IPC-A-610 are commonly referenced for rework practices and electronic assembly acceptability, while specific requirements depend on product type and regulatory environment.

Production documentation becomes especially important when a board will be manufactured repeatedly. Consistent records allow teams to compare batches, identify recurring defects, and support process improvement.

Production Considerations That Affect Reliability

Reliability begins with the relationship between design and manufacturing. Design for Manufacturing (DFM) and Design for Assembly (DFA) principles can reduce unnecessary complexity and improve production consistency.

Pad geometry, component spacing, thermal relief, board thickness, component orientation, and test-point access can all influence assembly results. A board that is electrically functional in theory may still create production difficulties if the physical design is difficult to assemble or inspect.

Supply continuity is another consideration. Components can become obsolete, have extended lead times, or undergo manufacturer revisions. Approved alternative parts should be evaluated carefully because even apparently similar components can differ in electrical behavior or package characteristics.

Why Testing Data Matters After Production

Testing records are valuable beyond the immediate release of a production batch. When failures occur in the field, historical inspection and test data can help engineers identify whether the problem originated from assembly, components, firmware, or the underlying design.

Trend analysis can also reveal gradual process changes. A rising rate of solder defects, for example, may indicate changes in stencil condition, paste handling, thermal profiles, or component placement accuracy.

This makes production data an important part of continuous improvement rather than simply a record of pass-or-fail results.

Frequently Asked Questions

What does turnkey PCB assembly include?

Turnkey PCB assembly can include component sourcing, PCB assembly, soldering, inspection, electrical testing, and related production coordination. The exact scope depends on the manufacturing arrangement and project requirements.

Which components are commonly used on PCBs?

Common components include integrated circuits, resistors, capacitors, inductors, diodes, transistors, connectors, sensors, switches, and other application-specific electronic devices.

Why is AOI used during PCB production?

AOI helps detect visible assembly problems such as missing components, incorrect placement, polarity errors, and certain soldering defects using automated optical inspection.

What is the difference between ICT and functional testing?

ICT focuses on checking specific electrical characteristics and connections, while functional testing evaluates whether the completed board performs its intended operating functions under defined conditions.

How can PCB assembly reliability be improved?

Reliability improves when the design supports manufacturability, components are properly controlled, soldering processes are consistent, inspection coverage is appropriate, and electrical testing verifies the intended functionality.

Conclusion

Turnkey PCB assembly connects component procurement, board assembly, inspection, and testing into a coordinated production process. Each stage contributes to the performance of the final electronic assembly from selecting suitable components and preparing manufacturing data to placing parts accurately and verifying soldered connections.

Reliable production depends on more than automated equipment. Strong documentation, appropriate inspection methods, controlled soldering processes, traceability, and meaningful electrical testing all help create consistency from one production batch to another. Understanding these elements provides a clearer view of how modern printed circuit boards move from engineering design to dependable finished assemblies.
