Industrial devices may use interfaces such as RS-232, RS-422 or RS-485, while modern computers and monitoring systems may rely on USB or Ethernet. A suitable converter helps bridge these interface differences so that compatible devices can communicate without replacing an entire installed system.

For example, a computer with a USB port may need to communicate with a programmable logic controller (PLC) that uses RS-485. A USB-to-RS-485 converter provides the electrical interface needed for that connection. If the devices also use compatible communication protocols and settings, they can exchange data.

Serial converters are not all alike. Some translate electrical signals between interfaces, while others act as network gateways that translate communication protocols. Understanding this distinction is important when designing reliable industrial connectivity. Manufacturers such as Phoenix Contact document interface converters and gateways for connecting serial equipment to Ethernet networks.

What Is a Serial Communication Converter?

A serial communication converter is a hardware device that enables data transfer between equipment using different physical interfaces or, in some cases, different communication protocols.

Serial communication sends data sequentially over a communication channel. Depending on the interface, the connection may use individual signal wires, a differential wire pair or another supported transmission arrangement.

A converter may perform one or more of the following functions:

• Convert electrical signal levels between interfaces.

• Adapt USB connectivity to a serial interface.

• Convert single-ended signalling to differential signalling.

• Connect serial equipment to Ethernet networks.

• Provide electrical isolation between connected circuits.

• Translate data between different industrial protocols.

• Support communication with legacy equipment and modern monitoring systems.

The specific functions depend on the converter design. A simple electrical interface converter does not necessarily understand the meaning of the data passing through it.

How a Serial Converter Works

A typical conversion process involves several stages.

1. Data transmission: The source device sends serial data through its communication interface.

2. Signal reception: The converter receives the electrical signals.

3. Interface adaptation: Its electronic circuitry adapts the signals to the target interface.

4. Data transmission: The converted signals are sent to the receiving device.

5. Response handling: If the communication arrangement supports two-way exchange, responses travel back through the converter.

For example, an RS-232-to-RS-485 converter receives RS-232 signals and generates the differential signals required by an RS-485 interface. The receiving device must still use compatible communication settings and understand the transmitted protocol.

A protocol gateway works differently: it may interpret messages in one protocol and create corresponding messages in another. This requires more processing than simply adapting electrical signals.

Why Serial Communication Converters Matter

Serial communication remains important because industrial equipment often operates for many years. Replacing an entire machine or control system merely to change its communication interface may be unnecessary when a suitable converter can provide interoperability.

Connecting Different Interfaces

A converter can bridge equipment that uses different physical interfaces, such as RS-232 and RS-485, or a computer’s USB port and an industrial serial network.

Supporting Existing Equipment

Factories, utilities and commercial buildings may contain meters, controllers, instruments and machines with established serial interfaces. Converters can help connect this equipment to newer monitoring systems.

Extending Connectivity Options

Depending on the device, conversion can provide access through Ethernet networks, USB-equipped computers or optical-fibre links.

Improving Electrical Protection

Some converters provide galvanic isolation and surge protection. These features can help reduce the effects of electrical disturbances and differences in ground potential, provided the device is correctly selected and installed.

Enabling Centralized Monitoring

A suitable serial-to-Ethernet device or protocol gateway can help a monitoring computer communicate with several compatible devices over a network. The network architecture, protocol and addressing arrangement must support the intended configuration.

Main Types of Serial Communication Converters

Different converters address different connectivity requirements. Selecting the correct type begins with identifying the interfaces on both devices.

1. RS-232 to RS-485 Converter

This converter connects equipment using RS-232 to equipment using RS-485.

RS-232 is commonly associated with point-to-point communication, whereas RS-485 supports differential signalling and multidrop networks. RS-485 is therefore widely used where several industrial devices share a communication bus.

Typical applications include:

• Connecting a computer to an RS-485 meter network.

• Integrating older controllers with industrial monitoring equipment.

• Connecting building-management controllers.

• Communicating with compatible instrumentation.

The converter must support the required data rate and operating mode. RS-485 wiring, termination, polarity and any necessary signal common must also be considered.

2. RS-232 to USB Converter

This device provides a serial interface to a computer through USB. Depending on the design, it may use a dedicated USB-to-serial chip or a cable containing the conversion electronics.

Common applications include:

• Configuring electronic instruments.

• Accessing compatible controller consoles.

• Communicating with laboratory equipment.

• Connecting serial peripherals to computers without a native serial port.

Driver compatibility, operating-system support, connector pinout and voltage levels should be checked before use.

3. USB to RS-485 Converter

A USB-to-RS-485 converter allows a computer to communicate with compatible RS-485 equipment.

It is useful for configuration, data collection and troubleshooting. Some models support automatic control of the RS-485 transmitter, which is particularly useful for two-wire half-duplex communication.

Important selection factors include:

• Two-wire or four-wire support.

• Half-duplex or full-duplex operation.

• Supported baud rates.

• Electrical isolation.

• Surge protection.

• Driver compatibility.

• Terminal arrangement and signal polarity.

A USB converter does not automatically translate Modbus data into another protocol. It usually provides the physical connection; compatible software must generate and interpret the required messages.

4. RS-232 to RS-422 Converter

RS-422 uses differential signalling and is designed for reliable communication over suitable cable arrangements. An RS-232-to-RS-422 converter bridges equipment using these two interfaces.

Typical applications include industrial instrumentation, control equipment and communication links where RS-422 is part of the existing system.

Before connecting equipment, verify whether the RS-422 interface is intended for a single driver with multiple receivers or another supported configuration. Do not assume RS-422 and RS-485 wiring or operating modes are interchangeable.

5. RS-485 to Ethernet Converter

This category includes serial device servers and related connectivity devices. It allows serial equipment to communicate through an Ethernet network.

Some devices provide transparent serial tunnelling, making the serial data available through a network connection. Others include protocol-aware functions or gateways.

Applications include:

• Remote monitoring of meters.

• Connecting serial controllers to supervisory computers.

• Accessing industrial instruments from networked workstations.

• Integrating legacy serial equipment into a broader monitoring architecture.

Network configuration, authentication, encryption, firewall rules and access restrictions are important, particularly when the equipment is reachable from outside a local industrial network.

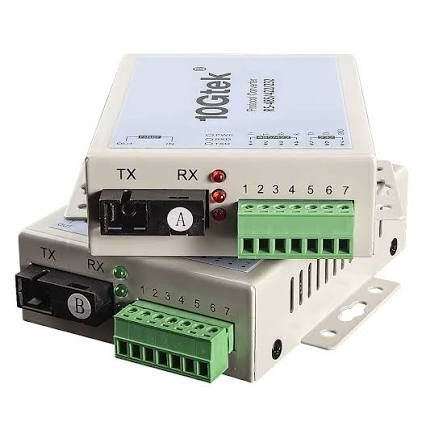

6. Serial-to-Fibre Converter

A serial-to-fibre converter carries serial communication over an optical-fibre link. It is useful where electrical noise, ground-potential differences or the required distance make a copper connection unsuitable.

Potential applications include industrial plants, power facilities, geographically separated control panels and electrically noisy environments.

Optical fibre provides electrical isolation across the fibre link, but the converter’s power supply, copper-side wiring and connected equipment still require appropriate protection.

7. Isolated Serial Converter

An isolated converter separates the electrical domains of its interfaces using an isolation barrier.

Depending on the design, it can help reduce ground loops and protect connected electronics against specified electrical disturbances.

Isolation ratings, working voltage, surge protection and environmental specifications vary between models. Isolation should not be treated as unlimited protection against every electrical fault.

8. Multi-Protocol Gateway

A multi-protocol gateway connects devices that use different communication protocols. Unlike a simple interface converter, it may read the structure and meaning of messages and map data into another protocol.

For example, a gateway may collect Modbus RTU register values over RS-485 and expose corresponding data through Modbus TCP or another supported industrial communication system.

Such a gateway requires correct configuration of device addresses, data types, register mapping, communication timing and error handling.

Understanding the Main Serial Interfaces

RS-232

RS-232 is an electrical interface standard traditionally used for point-to-point communication. It is commonly found in configuration ports, instruments, legacy computers and certain industrial devices.

Key characteristics include:

• Generally used for communication between two endpoints.

• Uses single-ended signalling referenced to a common signal ground.

• Has defined electrical voltage levels and signal conventions.

• Often uses connectors such as DB9 or DB25, although other connector arrangements exist.

• Is sensitive to cable and electrical conditions when used beyond its intended operating range.

The connector shape alone does not guarantee that two devices have compatible pinouts. Signal direction, ground connections and any hardware handshaking lines must be checked.

RS-422

RS-422 uses differential signalling, in which the receiver interprets the voltage difference between a pair of conductors. This improves resistance to common-mode electrical noise compared with single-ended signalling.

It is used in selected instrumentation, control systems and communication links.

Important characteristics include:

• Differential transmission.

• Good noise immunity when correctly wired.

• Support for suitable point-to-point and certain multidrop arrangements.

• Separate transmission and reception pairs in common full-duplex configurations.

The permitted topology and number of receivers depend on the interface implementation and applicable specifications.

RS-485

RS-485 is widely used in industrial networks because its differential signalling supports communication across a shared bus.

Common characteristics include:

• Two-wire half-duplex networks.

• Four-wire arrangements that can support separate transmit and receive paths.

• Multidrop communication with multiple devices.

• Good noise immunity when the wiring and installation follow appropriate practices.

• Support for a wide range of industrial data rates, depending on cable length and system design.

A two-wire RS-485 bus commonly uses a daisy-chain topology with appropriate termination at the physical ends of the trunk. Long branches and incorrect termination can cause signal reflections and communication errors. The Modbus Organization’s serial-line guide documents RS-485 physical-layer arrangements and network implementation considerations.

USB

USB is a digital interface widely used by computers and embedded systems. USB-to-serial converters bridge USB connectivity to a serial interface such as RS-232 or RS-485.

The computer may create a virtual serial port, allowing compatible software to communicate through familiar serial-port settings.

Ethernet

Ethernet provides network connectivity rather than directly defining the serial signalling used by RS-232, RS-422 or RS-485. A serial device server can transport serial data over an Ethernet network, while a protocol gateway may also translate the messages.

This distinction is important: carrying serial data across Ethernet is not necessarily the same as converting Modbus RTU messages into Modbus TCP messages.

Serial Communication Protocols Explained

A physical interface and a communication protocol serve different purposes. The interface defines how signals are transmitted, while the protocol defines how devices structure messages and interpret the data.

Modbus RTU

Modbus RTU is widely used in industrial control systems. It commonly operates over RS-485 and can also use compatible RS-232 or RS-422 interfaces.

It enables compatible devices to read measurements, access registers and exchange control information. Messages use binary data and include a cyclic redundancy check (CRC) for error detection.

Typical applications include PLCs, energy meters, temperature controllers and variable-frequency drives. The Modbus Organization provides the official serial-line implementation guide for engineers working on new systems.

Modbus ASCII

Modbus ASCII represents message information using ASCII characters rather than the compact binary representation used by Modbus RTU. This can make message contents easier to inspect with a terminal program, although it generally uses more transmitted characters.

The device, communication software and converter configuration must support the same mode.

Modbus TCP

Modbus TCP carries Modbus messages over TCP/IP networks. It is commonly used when industrial devices communicate through Ethernet.

A Modbus RTU-to-Modbus TCP gateway can connect a serial Modbus network to a compatible Ethernet-based system. The gateway must map requests and responses correctly; an ordinary serial-to-Ethernet tunnel does not necessarily perform this translation.

PROFIBUS and PROFINET

PROFIBUS is an established industrial fieldbus technology, while PROFINET uses industrial Ethernet.

A gateway can connect compatible equipment across these systems by translating supported data and communication functions. Such integration requires attention to device configuration, data mapping, timing and supported functions.

EtherNet/IP

EtherNet/IP is an industrial communication technology built on standard Ethernet and Internet protocol technologies. Certain gateways connect serial devices or Modbus equipment to EtherNet/IP systems.

The gateway’s compatibility with the exact device roles, data types and communication functions must be verified.

HART

HART is used with process instrumentation and supports digital communication alongside an analog measurement signal in common implementations. HART-compatible gateways can make instrument measurements and diagnostic information available to broader control and monitoring systems.

The gateway must support the particular HART implementation and required integration functions.

Comparison of Common Interfaces and Protocols

The table distinguishes interfaces from protocols because they are related but not interchangeable. A device may use RS-485 as its electrical interface and Modbus RTU as its protocol.

Industrial Applications of Serial Communication Converters

Factory Automation

Factories use serial converters to connect PLCs, motor drives, temperature controllers, sensors and other equipment. A correctly configured converter can allow a supervisory computer to read device information without changing the original electrical interface.

For example, a PLC may collect speed, operating status and fault information from a compatible motor drive through Modbus RTU over RS-485.

Energy Monitoring

Energy meters and power-monitoring instruments often support serial communication. A converter or gateway can connect these instruments to a computer or building monitoring platform.

Collected data may include voltage, current, energy consumption, power factor and selected diagnostic information, depending on the instrument.

Building Management

Heating, ventilation, air conditioning, lighting controllers and other building equipment may use serial interfaces. Converters can help integrate compatible devices with centralized monitoring systems.

Successful integration depends on protocol compatibility, register definitions and network configuration.

Water and Wastewater Systems

Pumps, flow meters, pressure instruments and control panels may exchange data through serial networks. A converter can help a monitoring system access measurements and device status.

Industrial control networks should be designed so that communication faults do not create unsafe operating conditions.

Power Generation and Distribution

Selected meters, protective equipment and monitoring devices use serial interfaces. Isolated converters and fibre links can be useful in electrically demanding environments, subject to the equipment’s ratings and installation requirements.

Laboratory and Test Equipment

Laboratory instruments, electronic test equipment and measurement devices may provide RS-232 or USB connectivity. Converters enable compatible computers to collect readings, configure instruments or automate test sequences.

Transport and Infrastructure

Serial communication is found in certain transport control systems, access equipment, information displays and infrastructure monitoring devices. Converters can bridge older interfaces to supported networked systems.

How to Choose the Right Serial Converter

Selecting a converter begins with identifying the actual communication requirements rather than choosing a device based only on connector shape.

1. Identify Both Interfaces

Confirm the interface used by the source device and the destination device. For example, a computer may provide USB while an industrial meter uses RS-485.

Also verify connector pinouts, signal direction and electrical requirements.

2. Confirm the Protocol

Determine whether the devices use Modbus RTU, Modbus ASCII, a proprietary serial protocol or another communication format.

If both devices use the same protocol and only their physical interfaces differ, a simple interface converter may be sufficient. If their protocols differ, a compatible protocol gateway may be necessary.

3. Check Communication Settings

The following settings often need to match:

• Baud rate.

• Data bits.

• Parity.

• Stop bits.

• Device address.

• Communication mode.

• Request timeout and response timing.

For example, two Modbus RTU devices configured with different baud rates or parity settings may fail to communicate even when their wiring is correct.

4. Consider Distance and Cable Type

The required communication distance influences the interface, cable, data rate and installation method.

RS-485 is frequently selected for industrial multidrop networks. Longer runs require careful consideration of cable characteristics, topology, grounding and termination.

Do not assume a particular maximum distance applies under every condition. Permitted data rate and cable length depend on the interface standard, cable characteristics and electrical environment.

5. Evaluate Electrical Isolation

Isolation can be important when equipment operates from different power sources or when electrical disturbances are possible.

Check the converter’s isolation ratings, surge protection and grounding instructions. Isolation should be considered alongside the rest of the electrical design.

6. Check Environmental Ratings

Industrial converters may operate inside control cabinets or near machinery. Relevant factors include:

• Operating temperature range.

• Vibration resistance.

• Humidity tolerance.

• Enclosure protection.

• Electromagnetic compatibility.

• Power supply requirements.

• Mounting and terminal arrangements.

The selected device should be appropriate for the actual installation environment.

7. Review Network Security

Serial-to-Ethernet devices can make equipment accessible through a network. Review available authentication, encryption, access controls, firmware maintenance and diagnostic features.

Where practical, separate operational technology networks from general-purpose networks and restrict access to the devices that need to communicate.

Serial Converter Installation and Configuration

A reliable installation requires both correct hardware connections and compatible communication settings.

Wiring and Termination

For RS-485, check the differential signal terminals and the manufacturer’s wiring diagram. Labels such as A and B are not always applied consistently across manufacturers, so verify the documentation rather than relying solely on terminal names.

For a typical two-wire RS-485 bus:

• Use suitable twisted-pair cable.

• Follow the recommended bus topology.

• Install termination at the appropriate physical ends of the trunk.

• Apply biasing where required by the network design.

• Check signal common and grounding requirements.

• Avoid excessive branch lengths.

For RS-232, verify transmit, receive and signal-ground connections. Some devices also require hardware handshaking signals, which must be wired or configured appropriately.

Power Supply

Check the converter’s required voltage, polarity and current capacity. Some USB converters draw power from the host computer, while industrial models may require a separate supply.

Do not connect a supply based solely on the appearance of the connector.

Driver and Software Configuration

A USB-to-serial adapter may require an operating-system driver. After installation, confirm that the expected serial port appears and that the software can open it.

For a protocol gateway, configure the serial interface, network parameters, device roles and data mapping according to the manufacturer’s documentation.

Testing the Connection

A practical commissioning process is to:

1. Confirm the converter model and wiring.

2. Verify the power and status indicators.

3. Check serial-port or network configuration.

4. Confirm baud rate, parity, data bits and stop bits.

5. Verify device addressing and protocol mode.

6. Send a known test request.

7. Check the response and error counters.

8. Test communication under normal operating conditions.

In industrial control environments, commissioning should follow the site’s safety procedures and avoid unplanned commands to equipment that may be operating machinery.

Common Serial Communication Problems and Troubleshooting

No Communication

Possible causes include incorrect wiring, wrong port selection, missing power, an incompatible interface or mismatched communication settings.

Start by confirming the physical connection and checking the device documentation.

Incorrect or Corrupted Data

Data corruption may result from electrical noise, poor cable routing, incorrect grounding, unsuitable cable characteristics or mismatched serial settings.

Inspect the wiring and communication parameters before changing more complex settings.

Intermittent RS-485 Communication

Intermittent communication may indicate missing or incorrect termination, excessive cable branches, poor connections, incompatible biasing or electrical interference.

A structured inspection of the bus topology and signal wiring is often more effective than repeatedly restarting the equipment.

Incorrect Device Address

On a multidrop network, each device generally needs a unique address within the supported range. Duplicate addresses can cause conflicting responses or unpredictable behavior.

Confirm each device’s address and the address used by the communicating software.

Modbus Timeout Errors

Timeouts can occur when a device does not respond, the request reaches the wrong address, serial settings are incorrect or the response takes longer than the configured timeout.

Check the device address, baud rate, parity, supported function codes, register addresses and timing configuration.

Network Access Problems

For serial-to-Ethernet devices, verify the IP address, subnet configuration, network route, firewall rules and configured communication port.

If the device uses a protocol gateway, also confirm that the gateway is mapping the intended serial device and data correctly.

Ground Loops and Electrical Disturbances

Differences in ground potential can disrupt communication or damage equipment in some installations. Where appropriate, consider a properly rated isolated converter, suitable cable routing and an installation design that follows the manufacturer’s grounding instructions.

Advantages and Limitations

Main Advantages

• Connects equipment with different physical interfaces.

• Helps extend the useful life of established industrial systems.

• Supports centralized monitoring and data collection.

• Enables selected serial devices to communicate through Ethernet networks.

• Can reduce the need to change otherwise functional equipment.

• Some models provide isolation, surge protection and diagnostic features.

• Protocol gateways can make legacy device data available to newer control systems.

Important Limitations

• A basic converter does not necessarily translate protocols.

• Incorrect wiring or settings can prevent communication.

• Performance depends on the interface, protocol and network design.

• Long cable runs and noisy environments require careful engineering.

• Some devices need operating-system drivers or configuration software.

• Network-connected converters can introduce security concerns if poorly configured.

• A single shared bus fault may interrupt communication with multiple devices.

Modbus is particularly useful for many industrial systems, but its shared communication arrangement means that a cable fault may affect several connected devices. Network reliability and fault handling should therefore be part of the system design.

Serial Converters and Industrial Connectivity Trends

Industrial Internet of Things

The Industrial Internet of Things (IIoT) connects industrial equipment with monitoring, analysis and data-management systems. Serial gateways can help bring data from established devices into these architectures.

For example, a gateway may collect readings from serial meters and publish selected information through a supported industrial messaging protocol.

Edge Computing

Edge gateways process or filter information close to the equipment that generates it. This can reduce unnecessary data transfer and support local monitoring or analysis.

The usefulness of edge processing depends on the gateway’s computing capability, software and communication interfaces.

Integration with Modern Networks

Serial-to-Ethernet device servers allow serial data to be carried across a network. Protocol-aware gateways can also translate supported industrial protocols, helping connect legacy equipment to modern automation systems.

Diagnostics and Remote Monitoring

Some industrial converters provide status indicators, communication counters, event logs or web-based configuration tools. These functions can help engineers identify communication problems and monitor device connectivity.

Remote access should be controlled carefully, especially when converters are connected to operational technology networks.

Cybersecurity and Secure Protocols

As industrial equipment becomes more connected, authentication, encryption, network segmentation and controlled remote access become increasingly important.

The Modbus Organization documents a Modbus Security protocol that combines TLS with authentication and message-integrity protection using digital certificates. Whether this is available depends on the specific protocol implementation and equipment; it should not be assumed that a traditional serial converter provides these capabilities.

Tools and Resources for Serial Communication

Useful tools for learning, testing and troubleshooting include:

• Serial terminal software: Sends and receives raw serial data for basic communication checks.

• USB-to-serial diagnostic tools: Help verify port availability and interface operation.

• Modbus testing software: Sends supported requests and checks responses from compatible devices.

• Digital multimeter: Helps verify supply voltage, continuity and selected electrical conditions.

• Oscilloscope or differential probe: Helps inspect signal quality when used by suitably trained personnel.

• Serial protocol analyser: Captures and interprets communication frames where supported.

• Manufacturer documentation: Provides pinouts, electrical limits, wiring diagrams and configuration instructions.

• Official Modbus specifications: Define the protocol and serial-line implementation requirements.

Tools should be used within their rated limits. Electrical measurements on industrial equipment may require qualified personnel and appropriate isolation procedures.

Frequently Asked Questions

1. What is a serial communication converter?

It is a device that enables communication between equipment using different serial interfaces or, in some cases, different communication protocols. Its functions depend on whether it is an electrical interface converter, serial device server or protocol gateway.

2. What is the difference between RS-232 and RS-485 converters?

RS-232-to-RS-485 converters adapt between single-ended RS-232 signalling and differential RS-485 signalling. RS-485 is commonly used for industrial multidrop networks, while RS-232 is generally used for point-to-point connections.

3. Does a USB-to-RS-485 converter support Modbus RTU?

It can provide the physical interface required for Modbus RTU communication, provided it is compatible with the system. Software must also support Modbus RTU and use the correct communication settings.

4. What is the difference between a serial converter and a protocol gateway?

A serial converter may only adapt electrical signals or carry serial data through another interface. A protocol gateway interprets and translates supported messages between protocols, such as Modbus RTU and Modbus TCP.

5. Why is RS-485 common in industrial automation?

RS-485 uses differential signalling and supports multidrop configurations, making it useful for connecting multiple compatible devices over a shared bus. Reliable operation still depends on appropriate cabling, termination, topology and electrical conditions.

6. Can a serial converter connect legacy equipment to Ethernet?

Yes. A serial device server can carry serial data over Ethernet, while a protocol gateway can translate supported messages into another protocol. The correct choice depends on the equipment and the intended network architecture.

7. Does a serial converter improve communication speed?

Not necessarily. It enables a compatible connection, but performance is limited by the interfaces, baud rate, protocol, processing time and network conditions. A converter does not automatically make a slow serial device communicate faster.

Conclusion

Serial communication converters play an important role in industrial connectivity by bridging interfaces and, where supported, translating protocols. From RS-232 and RS-485 adapters to serial device servers and Modbus gateways, these devices can connect established equipment to modern monitoring and automation systems.

Choosing the correct converter requires understanding the physical interfaces, protocol requirements, wiring, operating environment, electrical protection and network-security needs. With careful configuration and testing, serial converters can help maintain reliable data exchange across a wide range of industrial applications.

Disclaimer: This article is intended for general educational and informational purposes only. It is not written to promote a particular brand or encourage a commercial transaction. Technical capabilities and compatibility vary by device and installation. Always consult the relevant manufacturer documentation and applicable standards before configuring industrial communication equipment.
