Modern elevator systems combine mechanical equipment, electrical systems, control technology, sensors and safety mechanisms to provide controlled vertical movement. While traditional systems relied heavily on mechanical controls, newer elevators increasingly incorporate advanced controllers, destination-control systems, energy-efficient drives, connected monitoring and intelligent maintenance technologies.

Understanding the different types of lifts and elevators, their working principles, major components, safety features and modern technologies can help explain how these systems operate and where different configurations are appropriate.

What Are Lifts and Elevators?

The terms lift and elevator generally refer to equipment used to transport people or materials vertically between floors.

"Lift" is commonly used in British English and in countries such as India, while "elevator" is more common in American English.

A typical passenger elevator system consists of:

• Elevator car
• Hoisting mechanism
• Guide rails
• Counterweight or hydraulic equipment
• Doors
• Control system
• Safety equipment
• Electrical infrastructure

The exact configuration depends on the elevator type and application.

How Do Elevators Work?

The operating principle varies according to the elevator design.

A conventional traction elevator uses an electric motor and traction system to move the elevator car along vertical guide rails. In many configurations, ropes connect the car to a counterweight passing over a sheave driven by the motor.

The counterweight helps balance the mass of the car and a portion of its rated load, reducing the amount of energy required for movement.

A simplified operating sequence is:

1. A passenger selects a destination.
2. The control system receives the request.
3. The elevator determines the required movement.
4. The drive system activates the motor.
5. The car moves along guide rails.
6. Sensors monitor position and movement.
7. The controller regulates acceleration and deceleration.
8. The car stops at the selected floor.
9. The doors open after the system confirms the appropriate stopping position.

Hydraulic elevators use a different mechanism, where hydraulic pressure moves a piston connected to the elevator platform or car.

Main Types of Lifts and Elevators

Elevators can be categorized according to their drive system, application, building requirements and operating configuration.

Traction Elevators

Traction elevators use an electric motor, sheave and ropes to move the elevator car.

A typical system includes:

• Motor
• Traction sheave
• Suspension ropes
• Counterweight
• Guide rails
• Elevator car
• Controller

Traction systems are widely used in residential, commercial and high-rise buildings.

Geared Traction Elevators

Geared traction elevators use a gearbox between the motor and traction sheave.

The gearbox helps regulate the rotational speed and provides the mechanical characteristics required for elevator movement.

They can be used in various low- and medium-rise applications.

Gearless Traction Elevators

Gearless systems connect the motor directly to the traction sheave.

They can provide:

• High operating efficiency
• Smooth movement
• Suitability for higher speeds
• Application in taller buildings

Gearless traction systems are commonly associated with high-rise elevator installations.

Machine-Room-Less Elevators

Machine-room-less, or MRL, elevators integrate the traction machinery within the hoistway rather than requiring a separate machine room in the traditional configuration.

Potential advantages include:

• Efficient use of building space
• Reduced dedicated machine-room requirements
• Flexible architectural planning

The exact equipment arrangement varies by manufacturer and elevator design.

Hydraulic Elevators

Hydraulic elevators use hydraulic fluid and a piston to move the elevator car.

The basic process involves:

1. A pump moves hydraulic fluid into a cylinder.
2. Pressure acts on the piston.
3. The piston moves the elevator car upward.
4. Releasing fluid allows controlled downward movement.

Hydraulic elevators are generally more common in low-rise applications.

Passenger Elevators

Passenger elevators are designed primarily for transporting people.

They are commonly found in:

• Apartment buildings
• Hotels
• Offices
• Hospitals
• Shopping centers
• Educational institutions

Their capacity and speed vary according to building requirements.

Freight Elevators

Freight elevators are designed for transporting goods and equipment.

They may feature:

• Heavy-duty construction
• Higher load capacity
• Durable interiors
• Reinforced doors
• Larger cabins

Their operation is generally adapted to industrial or commercial environments.

Service Elevators

Service elevators are intended for operational activities such as moving:

• Maintenance equipment
• Supplies
• Cleaning materials
• Commercial goods

Hotels, hospitals and commercial buildings may use dedicated service elevators to separate operational movement from passenger traffic.

Hospital Elevators

Hospital elevators are designed around the movement of:

• Patients
• Medical staff
• Beds
• Medical equipment
• Supplies

Cabin dimensions, door configuration and operating characteristics can therefore differ from standard passenger elevators.

Dumbwaiters

Dumbwaiters are compact lifting systems designed to transport smaller goods between floors.

They can be used in:

• Restaurants
• Hotels
• Libraries
• Offices
• Residential buildings

They are not intended for passenger transportation.

Major Elevator Components

An elevator is made up of several interconnected mechanical, electrical and control components.

Elevator Car

The elevator car is the enclosed platform where passengers or goods are transported.

It can include:

• Interior panels
• Handrails
• Control buttons
• Display systems
• Emergency communication equipment
• Lighting
• Ventilation

Hoistway

The hoistway is the vertical space through which the elevator car travels.

It contains components such as:

• Guide rails
• Suspension equipment
• Counterweight
• Wiring
• Door equipment

Guide Rails

Guide rails provide a controlled vertical path for the elevator car and, where applicable, the counterweight.

They help maintain alignment and limit unwanted horizontal movement.

Traction Machine

In traction elevators, the traction machine provides the mechanical force needed to move the elevator.

It generally includes:

• Electric motor
• Traction sheave
• Braking system
• Related mechanical components

Suspension Ropes

Suspension ropes connect the elevator car and counterweight in many traction systems.

They transfer the required forces between the car, counterweight and traction machinery.

Counterweight

The counterweight balances the elevator car and part of its rated load.

This reduces the energy required from the motor during movement.

Elevator Doors

Elevator doors separate the car from the hoistway.

Common configurations include:

• Automatic sliding doors
• Center-opening doors
• Side-opening doors

Door systems include sensors and interlocking mechanisms designed to prevent unsafe movement when the doors are not properly secured.

Controller

The controller acts as the elevator's central decision-making system.

It processes information from:

• Floor buttons
• Car controls
• Position sensors
• Door sensors
• Safety systems
• Other monitoring equipment

It then controls the drive, braking, doors and other functions.

Drive System

The drive system controls the motor's operation.

Modern variable-frequency drives can regulate motor speed to support smoother acceleration and deceleration.

Braking System

The braking system helps control and stop elevator movement.

Elevator brakes are designed according to the specific system architecture and applicable safety requirements.

Overspeed Governor

An overspeed governor monitors elevator speed.

If the elevator exceeds a specified speed threshold, the governor can activate safety mechanisms designed to stop or control the car.

Safety Gear

Safety gear is designed to engage with the guide rails under specified emergency conditions.

It provides an additional layer of protection against uncontrolled movement.

Buffers

Buffers are installed in the lower portion of the hoistway.

They are designed to absorb energy if the elevator car or counterweight travels beyond its normal operating range.

Elevator Safety Systems

Safety is a fundamental part of elevator engineering.

Modern elevator systems can incorporate multiple independent or complementary safety mechanisms.

Door Interlocks

Door interlocks help ensure that the elevator cannot operate normally when the landing doors are not properly closed and secured.

Door Sensors

Sensors can detect objects or people in the doorway.

They help prevent doors from closing when an obstruction is detected.

Emergency Braking

Elevators incorporate braking and safety systems designed to control movement under abnormal operating conditions.

Overspeed Protection

Overspeed protection can detect excessive movement speed and activate appropriate safety mechanisms.

Emergency Alarm

An emergency alarm or communication system allows passengers to signal for assistance when required.

Emergency Lighting

Emergency lighting can provide illumination if normal electrical power is interrupted.

Backup Power

Some buildings incorporate backup power systems to support elevator operation during power interruptions.

The extent of operation during a power outage depends on the building's electrical infrastructure and elevator configuration.

Load Detection

Modern elevators can use load sensors to detect the approximate weight inside the car.

This can help prevent operation when the rated capacity is exceeded.

Elevator Capacity

Elevator capacity is generally specified according to the maximum rated load.

Capacity requirements depend on factors such as:

• Building occupancy
• Number of floors
• Expected traffic
• Cabin dimensions
• Type of building
• Elevator purpose

Passenger elevators can range from relatively small systems to large-capacity units designed for major commercial buildings.

Elevator Speed

Elevator speed is selected according to building height and traffic requirements.

Low-rise buildings may use relatively low-speed elevators, while high-rise buildings require faster systems to reduce travel time.

High-speed elevator systems require carefully engineered:

• Motors
• Drives
• Guide systems
• Braking systems
• Control systems
• Cabin aerodynamics

Elevator Traffic Management

Large buildings can have significant elevator demand during peak periods.

Traffic-management technologies can improve elevator handling by analyzing:

• Passenger requests
• Destination floors
• Current elevator positions
• Elevator capacity
• Traffic patterns

Destination Control Systems

Destination-control systems allow passengers to select their destination before entering the elevator.

The system can group passengers traveling to similar floors and assign them to appropriate cars.

Potential benefits include:

• Reduced unnecessary stops
• Better passenger distribution
• Improved traffic handling
• More efficient elevator operation

Elevator Control Systems

Modern controllers coordinate several elevator functions.

A controller can manage:

• Floor positioning
• Acceleration
• Deceleration
• Door operation
• Traffic allocation
• Safety monitoring
• Fault detection

Microprocessor-based controls have largely replaced older relay-based systems in modern installations.

Variable-Frequency Drives

Variable-frequency drives control motor speed by adjusting the frequency and voltage supplied to the motor.

They can help provide:

• Smooth acceleration
• Controlled deceleration
• Improved ride comfort
• Efficient motor operation

Drive technology is an important part of modern elevator systems.

Regenerative Elevator Technology

Some modern elevators use regenerative drives that can recover electrical energy during certain operating conditions.

When the elevator motor operates in a regenerative mode, energy can be converted into electrical power rather than being dissipated entirely as heat.

Depending on the building and system design, recovered energy may be returned to the building's electrical network.

Energy-Efficient Elevators

Modern elevator systems can incorporate several energy-saving technologies:

• LED lighting
• Efficient motors
• Variable-frequency drives
• Regenerative drives
• Automatic lighting controls
• Standby modes
• Intelligent traffic management

Energy performance depends on elevator design, traffic patterns and building conditions.

Smart Elevator Technologies

Digital technologies are changing how modern elevator systems are monitored and managed.

Examples include:

• Remote monitoring
• Predictive maintenance
• IoT sensors
• Cloud-based analytics
• Digital displays
• Touchless controls
• Destination dispatch
• Mobile integration

IoT in Elevators

Internet of Things technologies can connect elevator components and sensors to monitoring platforms.

Data can be collected from:

• Motor temperature
• Vibration
• Door cycles
• Travel patterns
• Error codes
• Electrical conditions
• Usage frequency

This information can help maintenance teams identify abnormal operating patterns.

Predictive Maintenance

Traditional maintenance often follows scheduled intervals.

Predictive maintenance uses equipment data to identify potential issues before they develop into major failures.

Potential benefits include:

• Earlier fault detection
• Reduced unexpected downtime
• Better maintenance planning
• Improved equipment monitoring

Predictive systems do not eliminate the need for professional inspections and maintenance.

Touchless Elevator Controls

Modern buildings may use touchless technologies to reduce physical interaction.

Examples include:

• Mobile-based elevator calls
• Voice controls
• Sensor-based interfaces
• Destination selection through digital systems

These technologies can complement conventional controls.

Smart Building Integration

Elevators can be integrated into broader building-management systems.

Integration may allow coordination with:

• Access control
• Security systems
• Fire systems
• Building automation
• Energy management

For example, access-control systems can restrict elevator access to certain floors in buildings requiring controlled entry.

Elevator Applications

Elevators are used across a wide range of environments.

Residential Buildings

Apartment buildings commonly use passenger elevators to connect multiple floors.

Important considerations include:

• Capacity
• Traffic volume
• Reliability
• Accessibility
• Energy efficiency

Commercial Buildings

Office buildings may require multiple elevators to handle peak traffic.

Traffic management becomes particularly important during:

• Morning arrivals
• Lunch periods
• Evening departures

Hospitals

Hospitals require elevators capable of accommodating patients, beds, staff and equipment.

Reliability and appropriate cabin dimensions are particularly important.

Hotels

Hotels may use separate systems for:

• Guests
• Staff
• Service operations
• Freight

This can help organize building movement.

Shopping Centers

Shopping centers often combine elevators with:

• Escalators
• Travelators
• Stairs

The elevator system must accommodate both passenger movement and accessibility requirements.

Industrial Facilities

Industrial elevators can be designed to transport:

• Equipment
• Materials
• Components
• Workers

Freight requirements can differ considerably from passenger applications.

Accessibility Features

Modern elevator design can incorporate accessibility features for people with different mobility and sensory requirements.

Examples include:

• Braille buttons
• Audible floor announcements
• Visual indicators
• Appropriate door widths
• Handrails
• Accessible controls
• Level boarding

Applicable requirements depend on local building regulations and accessibility standards.

Elevator Maintenance

Regular maintenance is important for safe and reliable operation.

Maintenance activities can include inspection of:

• Doors
• Guide rails
• Ropes
• Brakes
• Motors
• Electrical connections
• Safety systems
• Sensors
• Controllers

Maintenance schedules should follow manufacturer requirements and applicable regulations.

Common Elevator Problems

Elevators can experience various operational issues.

Door Problems

Door faults can result from:

• Sensor issues
• Mechanical wear
• Obstructions
• Alignment problems
• Control-system faults

Unusual Noise

Unexpected sounds may indicate issues involving:

• Bearings
• Motors
• Guide systems
• Door mechanisms
• Other mechanical components

Leveling Issues

An elevator should stop appropriately relative to the floor level.

Improper leveling can create accessibility and safety concerns and requires professional inspection.

Slow Operation

Unexpected changes in elevator speed can result from:

• Drive problems
• Control faults
• Mechanical resistance
• Safety-system interventions

Professional technicians should investigate abnormal performance.

Elevator Inspection

Elevator inspection requirements depend on local regulations and jurisdiction.

Inspections may evaluate:

• Safety devices
• Doors
• Brakes
• Electrical systems
• Emergency systems
• Mechanical components
• Operating performance

Building owners and facility managers should follow applicable regulatory requirements.

Modern Elevator Design

Modern elevator design combines engineering requirements with architectural considerations.

Design elements can include:

• Stainless-steel interiors
• Glass panels
• LED lighting
• Digital displays
• Touch controls
• Energy-efficient lighting
• Custom interior finishes

The interior design can be adapted to residential, commercial, hospitality or institutional environments.

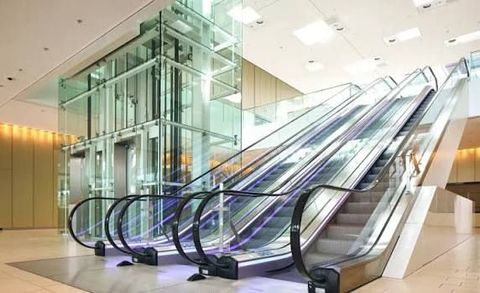

Glass Elevators

Glass elevators use transparent or partially transparent cabin and shaft elements.

They can provide:

• Panoramic views
• Architectural visibility
• Contemporary appearance

They are often used as architectural features in hotels, shopping centers and landmark buildings.

Observation Elevators

Observation elevators are designed to provide views of the surrounding environment.

They can be found in:

• Hotels
• Shopping centers
• Tourist attractions
• High-rise buildings

Their design can incorporate large glass panels and specialized architectural structures.

Fire and Emergency Operation

Elevator behavior during fires is governed by building design, applicable codes and elevator safety systems.

Elevators may be configured for specific emergency modes that prevent ordinary passenger use and allow designated emergency operations where required.

Building occupants should follow the building's emergency procedures rather than assuming an elevator is safe to use during a fire.

Elevator Safety for Passengers

Passengers can follow basic safety practices:

• Allow passengers to exit before entering.
• Keep clear of closing doors.
• Avoid exceeding the posted capacity.
• Do not force elevator doors.
• Use emergency communication systems when necessary.
• Follow building instructions during emergencies.
• Report unusual sounds or behavior to building management.

Lifts and Elevators vs Escalators

Lifts and escalators both provide vertical transportation but operate differently.

Many large buildings use both systems.

Lifts and Elevators vs Staircases

Stairs remain an important form of vertical circulation.

Elevators provide advantages for:

• People with mobility limitations
• Heavy luggage
• Goods movement
• Tall buildings
• Large vertical distances

Stairs provide an alternative during certain emergencies and can support everyday movement.

Choosing an Elevator System

Selecting an elevator system requires consideration of:

Building Height

The number of floors influences the appropriate technology.

Traffic Volume

Expected passenger demand affects the number, size and speed of elevators.

Building Purpose

Residential, commercial, industrial and healthcare buildings have different requirements.

Load Capacity

The elevator should accommodate the expected passenger or freight load.

Speed

Speed should match the building height and traffic pattern.

Energy Efficiency

Efficient motors, drives and standby systems can reduce energy consumption.

Accessibility

The system should comply with applicable accessibility requirements.

Maintenance

Availability of maintenance infrastructure and technical support is important for long-term operation.

Elevator Modernization

Older elevator systems can eventually require modernization.

Modernization may involve:

• Controller replacement
• Drive upgrades
• Door-system upgrades
• New displays
• Improved safety equipment
• Energy-efficient motors
• Monitoring systems

The scope depends on the age, condition and architecture of the existing system.

Future of Elevator Technology

Elevator technology is increasingly moving toward intelligent, connected and energy-conscious systems.

Future developments may involve:

• More advanced predictive maintenance
• Artificial intelligence-assisted monitoring
• Greater energy recovery
• Advanced destination management
• Contactless interfaces
• Improved accessibility
• Deeper integration with smart buildings

The objective is to improve safety, reliability, energy performance and passenger experience.

Key Insights

• Lifts and elevators provide controlled vertical transportation for people and goods.
• Traction and hydraulic systems are two major elevator technologies.
• Traction elevators can use geared or gearless configurations.
• Machine-room-less systems can reduce dedicated building space requirements.
• Elevator cars, guide rails, controllers, drives, doors and safety systems are key components.
• Counterweights can improve the efficiency of traction systems.
• Overspeed governors and safety gear provide important protective functions.
• Modern elevators increasingly use variable-frequency drives and digital controllers.
• Destination-control systems can improve passenger traffic management.
• IoT sensors can support remote monitoring and predictive maintenance.
• Regenerative drives can recover energy under suitable operating conditions.
• Accessibility features can improve usability for people with different mobility and sensory requirements.
• Regular professional inspection and maintenance are essential.
• Elevator selection depends on building height, traffic, capacity, speed, application and regulatory requirements.

Frequently Asked Questions

What is a lift or elevator?

A lift or elevator is a vertical transportation system designed to move people or goods between different levels of a building.

What are the main types of elevators?

Major types include traction elevators, hydraulic elevators, geared traction elevators, gearless traction elevators, machine-room-less elevators, passenger elevators and freight elevators.

How does a traction elevator work?

A traction elevator generally uses an electric motor, traction sheave, suspension ropes and a counterweight to move the elevator car along guide rails.

How does a hydraulic elevator work?

A hydraulic elevator uses pressurized hydraulic fluid to move a piston connected to the elevator car or platform.

What is an elevator counterweight?

A counterweight balances the elevator car and a portion of its rated load in many traction systems, reducing the force required from the motor.

What is an MRL elevator?

MRL stands for machine-room-less. These elevators integrate the traction machinery within the hoistway rather than using a conventional separate machine room.

What is a gearless elevator?

A gearless elevator uses a motor connected directly to the traction sheave without an intermediate gearbox.

What is an elevator controller?

The controller coordinates elevator functions such as movement, floor selection, door operation, positioning and safety-related inputs.

What safety systems are used in elevators?

Elevators can incorporate door interlocks, overspeed governors, safety gear, brakes, buffers, emergency communication systems and other protective mechanisms.

What is a destination-control system?

A destination-control system allows passengers to enter their desired floor before entering the elevator, allowing the system to group passengers with similar destinations.

Are elevators energy efficient?

Modern elevators can incorporate efficient motors, variable-frequency drives, regenerative systems, LED lighting and standby controls to improve energy performance.

How often should elevators be maintained?

Maintenance frequency depends on the elevator design, usage, manufacturer requirements and applicable local regulations. Professional maintenance should follow the relevant requirements.

Can elevators operate during a power outage?

Some buildings have backup power systems that allow designated elevator operation during power interruptions. The available functionality depends on the building and elevator configuration.

Are elevators safe during a fire?

Normal passenger elevator use during a fire is generally not appropriate unless the building has specifically designated emergency elevator procedures. Occupants should follow the building's emergency instructions.

Conclusion

Lifts and elevators are complex vertical transportation systems that combine mechanical components, electrical equipment, control systems and multiple safety mechanisms. From conventional traction and hydraulic elevators to modern machine-room-less, smart and connected systems, elevator technology has evolved considerably to address changing building requirements.

The most appropriate elevator configuration depends on factors such as building height, passenger traffic, load requirements, operating speed, building purpose, accessibility, energy efficiency and maintenance requirements.

Modern technologies such as variable-frequency drives, destination-control systems, IoT monitoring, regenerative drives and predictive maintenance are also changing how elevators operate and are managed.

Understanding the basic components and working principles provides useful context for evaluating elevator systems, while safety, regulatory compliance, professional maintenance and appropriate system design remain fundamental to reliable operation.

Disclaimer: This article is intended for general informational and educational purposes only. Elevator specifications, safety requirements, inspection procedures and applicable standards vary by jurisdiction, building type and equipment configuration. Professional engineers, certified technicians and relevant authorities should be consulted for installation, modification, inspection, maintenance or safety decisions.
