Modern tyre manufacturing relies heavily on automation, precision engineering, and digital monitoring systems. As vehicle technologies continue evolving, manufacturers increasingly utilize advanced tyre building equipment capable of supporting multiple tyre sizes and production requirements.

This guide explains the purpose, components, manufacturing workflow, technologies, and industry trends related to tyre building machines.

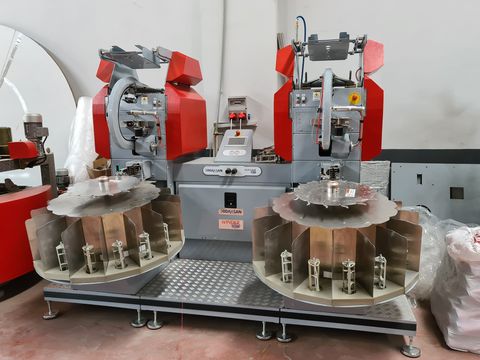

What Is a Tyre Building Machine?

A tyre building machine is an industrial system designed to assemble the individual layers of a tyre into an uncured "green tyre." During this process, components such as the inner liner, body plies, bead assemblies, sidewalls, belts, and tread are combined according to engineering specifications before curing.

The machine is an essential part of tyre manufacturing because it helps maintain dimensional accuracy and repeatability throughout production.Why Tyre Building Machines Are Important

Tyre production requires multiple layers to be positioned with high precision. Automated machinery helps reduce variability and improve manufacturing consistency.

Common objectives include:

• Precise component placement
• Consistent production quality
• Manufacturing efficiency
• Reduced material waste
• Automated assembly
• Process repeatability
• Production scalability
• Quality assurance

These capabilities support modern tyre manufacturing across passenger, commercial, agricultural, and industrial vehicle applications.

Evolution of Tyre Building Technology

Manufacturing equipment has evolved from labor-intensive assembly methods to highly automated production lines.

Main Components of a Tyre Building Machine

Modern tyre building equipment consists of several integrated mechanical and electronic systems.

Building Drum

The building drum acts as the primary platform where tyre components are assembled into the green tyre.

Functions include:

• Supporting tyre construction
• Maintaining dimensions
• Positioning materials
• Rotational control

Material Feeding System

Automated feeders deliver rubber compounds and reinforcement materials into the assembly process.

These systems help maintain production consistency while minimizing handling errors.

Bead Placement Unit

This section accurately positions bead assemblies that help secure the tyre to the wheel rim.

Precision alignment is critical during this stage.

Belt and Ply Applicator

Steel belts and textile reinforcement layers are applied according to manufacturing specifications.

Proper alignment contributes to tyre strength and structural integrity.

Tread Application System

The tread layer is placed around the tyre after internal structures have been assembled.

Automation helps maintain uniform positioning and consistent dimensions.

Control System

Modern machines commonly include programmable control systems that coordinate machine movements, monitor production parameters, and assist operators.

Major Machine Components

Tyre Manufacturing Process

Tyre production typically involves multiple sequential stages.

1. Material Preparation

Rubber compounds, steel cords, textile materials, and other components are prepared according to manufacturing requirements.

2. Component Assembly

Individual tyre layers are assembled using the tyre building machine.

This stage creates the uncured green tyre.

3. Inspection

Manufacturers often perform dimensional and visual inspections before the curing process.

4. Curing and Vulcanization

The assembled tyre is placed into specialized molds where heat and pressure complete the curing process.

5. Final Quality Testing

Completed tyres may undergo various inspections to evaluate dimensions, balance, appearance, and manufacturing consistency.

Automation in Modern Tyre Building Machines

Industrial automation continues transforming tyre manufacturing.

Common technologies include:

PLC-Based Controls

Programmable Logic Controllers coordinate machine functions and production sequences.

Servo Motors

Servo-driven systems provide precise positioning and movement.

Industrial Robotics

Robotic equipment may assist with material handling and repetitive manufacturing tasks.

Machine Vision

Camera systems can support inspection and alignment verification.

Human-Machine Interfaces (HMI)

Touchscreen interfaces enable operators to monitor machine status and production information.

Automation contributes to improved efficiency and repeatability.

Benefits of Automated Tyre Building

Modern manufacturing systems offer several operational advantages.

Production Consistency

Automation helps maintain uniform assembly across production batches.

Higher Productivity

Automated equipment can support continuous manufacturing operations.

Improved Precision

Digital controls assist in accurate component positioning.

Reduced Material Waste

Process optimization may contribute to more efficient material utilization.

Enhanced Monitoring

Digital systems provide production data for process evaluation and maintenance planning.

Actual performance depends on machine configuration, production requirements, and operational practices.

Industry Applications

Tyre building machines support manufacturing for various vehicle categories.

Common applications include:

• Passenger vehicles
• Commercial trucks
• Buses
• Motorcycles
• Agricultural machinery
• Construction equipment
• Industrial vehicles
• Off-road vehicles

Different tyre categories may require specialized manufacturing equipment.

Manufacturing Technology Trends (2025–2026)

Several developments continue influencing tyre manufacturing.

Smart Factory Integration

Manufacturing equipment is increasingly connected through digital production networks.

Predictive Maintenance

Sensor technologies help monitor machine performance and maintenance needs.

Artificial Intelligence

AI-assisted analytics are being explored to improve manufacturing processes and quality monitoring.

Energy Efficiency

Manufacturers continue developing equipment designed to optimize energy usage.

Digital Production Monitoring

Real-time manufacturing dashboards provide operational visibility.

Manufacturing Trends Overview

Major Manufacturers of Tyre Building Equipment

Several companies manufacture industrial tyre production equipment.

Examples include:

• VMI Group
• HARBURG-FREUDENBERGER (HF Group)
• Mesnac
• Kokusai Co., Ltd.
• Bartell Machinery Systems

These companies are mentioned solely for educational and industry-reference purposes.

Learning Resources

Individuals interested in tyre manufacturing technology may explore:

• Manufacturing engineering publications
• Industrial automation journals
• Mechanical engineering textbooks
• Rubber manufacturing research papers
• Industry 4.0 resources
• Industrial robotics documentation
• Quality management literature
• Manufacturing technology conferences

Frequently Asked Questions

What is a tyre building machine?

A tyre building machine is industrial equipment used to assemble tyre components into a green tyre before the curing process.

What is a green tyre?

A green tyre is an uncured tyre that has been assembled but has not yet undergone vulcanization.

Why is automation important in tyre manufacturing?

Automation helps improve consistency, production efficiency, precision, and process monitoring.

What industries use tyre building machines?

These machines are used by manufacturers producing tyres for passenger vehicles, commercial transportation, agriculture, construction, and industrial applications.

What technologies are used in modern tyre building machines?

Modern systems commonly incorporate PLC controls, servo motors, robotics, machine vision, sensors, and digital monitoring platforms.

Conclusion

Tyre building machines are a cornerstone of modern tyre manufacturing, enabling precise assembly of complex tyre components through advanced automation and engineering. As manufacturing technologies continue evolving, innovations such as smart factory integration, predictive maintenance, artificial intelligence, and digital quality monitoring are helping improve operational efficiency and production consistency.

Understanding how tyre building machines function provides valuable insight into one of the most important processes within the automotive manufacturing industry.
